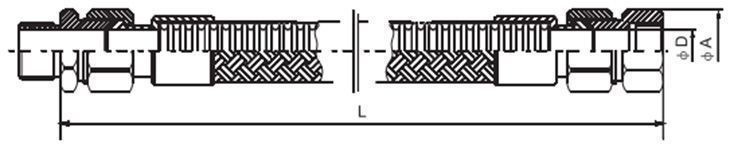

Explosion-Proof Flexible Connecting Pipe Model Specifications

Example: Bng-□×700□ Explosion-Proof Flexible Connecting Pipe

Pipe diameter (mm)	Inner diameter of tube (mm)			Thread specifications			Length L (mm)	The largest diameter in appearance (A)		Minimum bending radius (mm)
Pipe diameter (mm)	Type I	Type I	Type III	Imperial system	American system	Metric system	Length L (mm)	Type I	Type II	Minimum bending radius (mm)
13	13	13	15	G1/2	NPT1/2	M20*1.5	700	38	28	80
20	17	17	20	G3/4	NPT3/4	M25*1.5		42	34	110
25	21	21	25	G1	NPT1	M32*1.5		46	40	145
32	26	26	29	G1 1/4	NPT1 1/4	M40*1.5		60	48	180
40	30	30	36	G1 1/2	NPT1 1/2	M50*1.5		65	55	210
50	42	42	50	G2	NPT2	M63*1.5		85	75	250
70	50	50	64	G2 1/2	NPT2 1/2	M75*1.5		100	90	350
80	62	62	77	G3	NPT3	M90*1.5		115	115	400
100	85	90	95	G4	NPT4	M110*1.5		145	145	500
