Shenhai Explosion-Proof
Technical Parameter
| Serial number | Product model | Company |
|---|---|---|
| 1 | Rated voltage(V) | AC220V |
| 2 | Rated power (W) | 30~360W |
| 3 | ambient temperature | -30°~50° |
| 4 | Protection grade | IP66 |
| 5 | Anti-corrosion grade | WF2 |
| 6 | Installation method | See attached figure |
| 7 | Compliance with standards | GB7000.1 GB7000.1 IEC60598.1 IEC60598.2 |
Product Features
1. Aluminum alloy die-casting shell, with high-voltage electrostatic spraying on the surface, corrosion resistance and aging resistance;
2. Computer simulation light distribution design, using optical-grade lens material, high light transmittance;
3. Full-sealed rubber external power supply, wide voltage input, high protection performance, natural air cooling, can timely and effectively dissipate heat, and ensure lamps
Long-life work;
4. Stainless steel exposed fasteners with high corrosion resistance;
5. The new energy-saving and environment-friendly LED light source has small light decay and a service life of up to 100000 hours;
6. Special constant-current power supply, low power consumption, constant output power, open circuit, short circuit, overheat protection function, power factor up to
Above 0.9;
7. Simple industrial lamp appearance design, with mounting bracket and angle adjustment device, adjustable lighting direction, convenient installation.

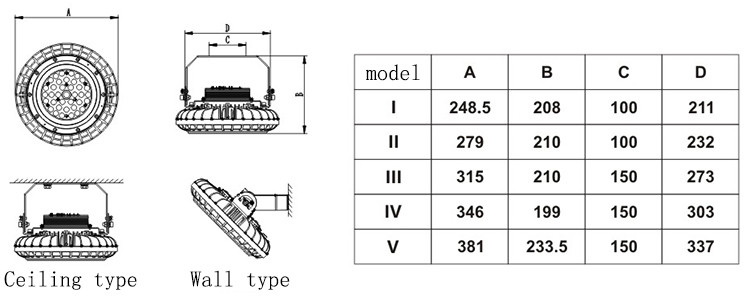

Installation Dimensions
Applicable Scope
Purpose
This series of products is applicable to lighting of power plants, steel, petrochemical, ships, stadiums, parking lots, basements, etc.
Scope of application
1. Anti-voltage fluctuation range: AC135V~AC220V;
2. Ambient temperature: – 25 ° to 40 °;
3. The installation height shall not exceed 2000m above sea level;
4. The relative humidity of the surrounding air is not more than 96% (at+25 ℃);
5. Places without significant shaking and shock vibration;
6. Acid, alkali, salt, ammonia, chloride ion corrosion, water, dust, humidity and other environments;
